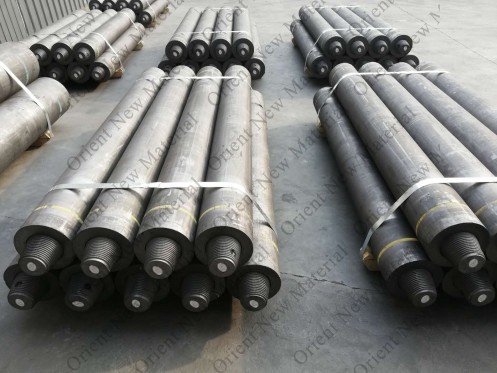

Graphite Electrodes
Graphite electrodes are mainly used in electric arc furnace. They are presently the only products available that have the high levels of electrical conductivity and the capability of sustaining the extremely high levels of heat generated in EAF. Graphite electrodes are also used to refine steel in ladle furnaces and in other smelting processes. Graphite electrodes are divided into 4 Types: UHPGraphite electrodes, SHP Graphite electrodes, HP Graphite electrodes, RP Graphite electrodes.
Graphite electrodes are mainly used in electric arc furnace. They are presently the only products available that have the high levels of electrical conductivity and the capability of sustaining the extremely high levels of heat generated in EAF. Graphite electrodes are also used to refine steel in ladle furnaces and in other smelting processes. Graphite electrodes are divided into 4 Types: UHP Graphite electrodes, SHP Graphite electrodes, HP Graphite electrodes, RP Graphite electrodes.
Diameter and length for all grades:
|
Diameter mm |
Length mm |
|||||
|
Nominal Diameter |
Actual Diameter |
Nominal Length |
Allowance |
|||
|
mm |
inch |
Max |
Min |
mm |
Standard |
Short |
|
200 |
8 |
205 |
200 |
1800 |
± 100 |
-275 |
|
250 |
10 |
256 |
251 |
1800 |
||
|
300 |
12 |
307 |
302 |
1800/2000 |
||
|
350 |
14 |
357 |
352 |
1800/2000 |
||
|
400 |
16 |
409 |
403 |
1800/2000 |
||
|
450 |
18 |
460 |
454 |
2100/2400 |
||
|
500 |
20 |
511 |
505 |
2100/2400 |
||
|
550 |
22 |
562 |
556 |
2100/2400 |
||
|
600 |
24 |
613 |
607 |
2400/2700 |
||
|
650 |
26 |
663 |
657 |
2400/2700 |
||
|
700 |
28 |
714 |
708 |
2500/2700 |
||
Fordetailed information, please contact with us.
